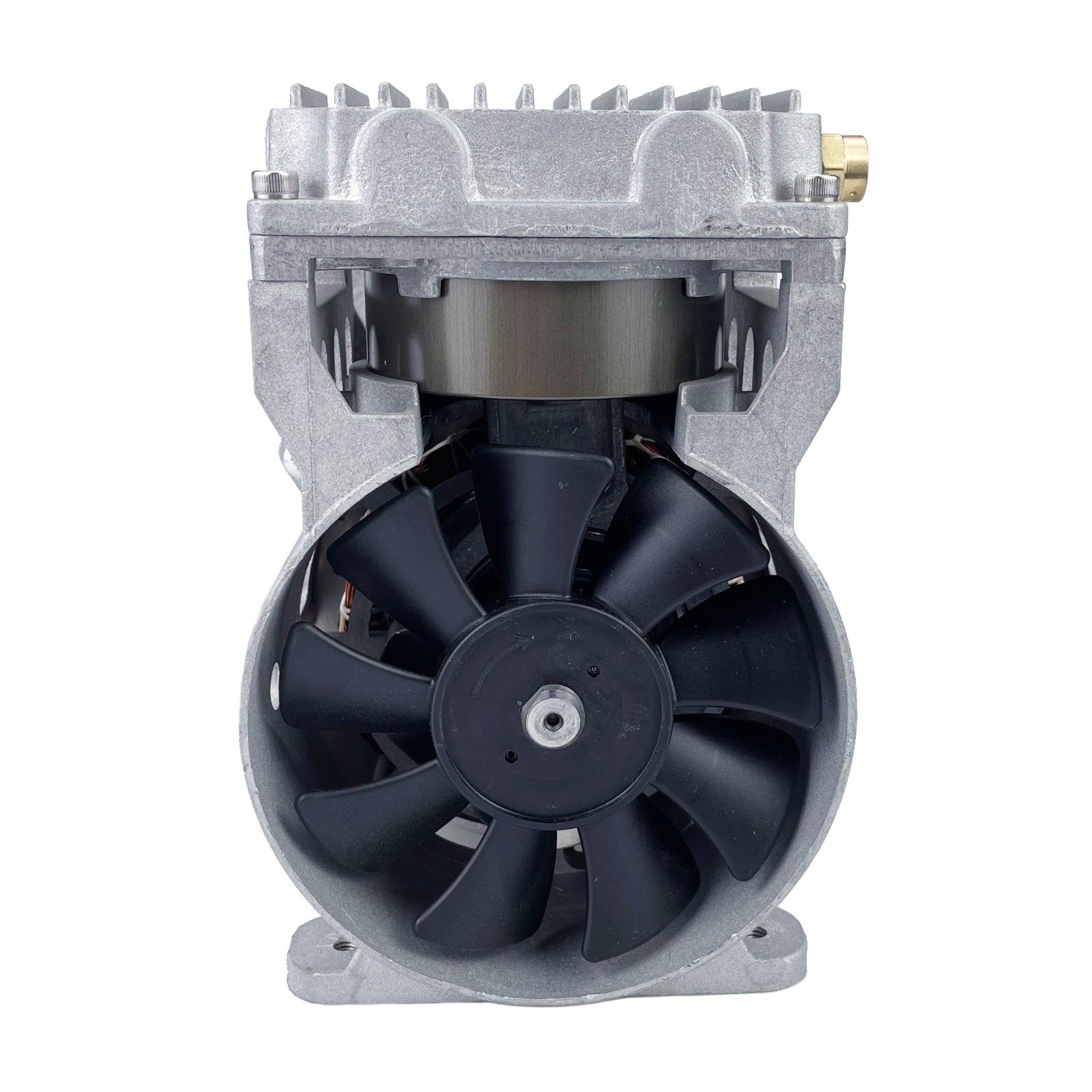

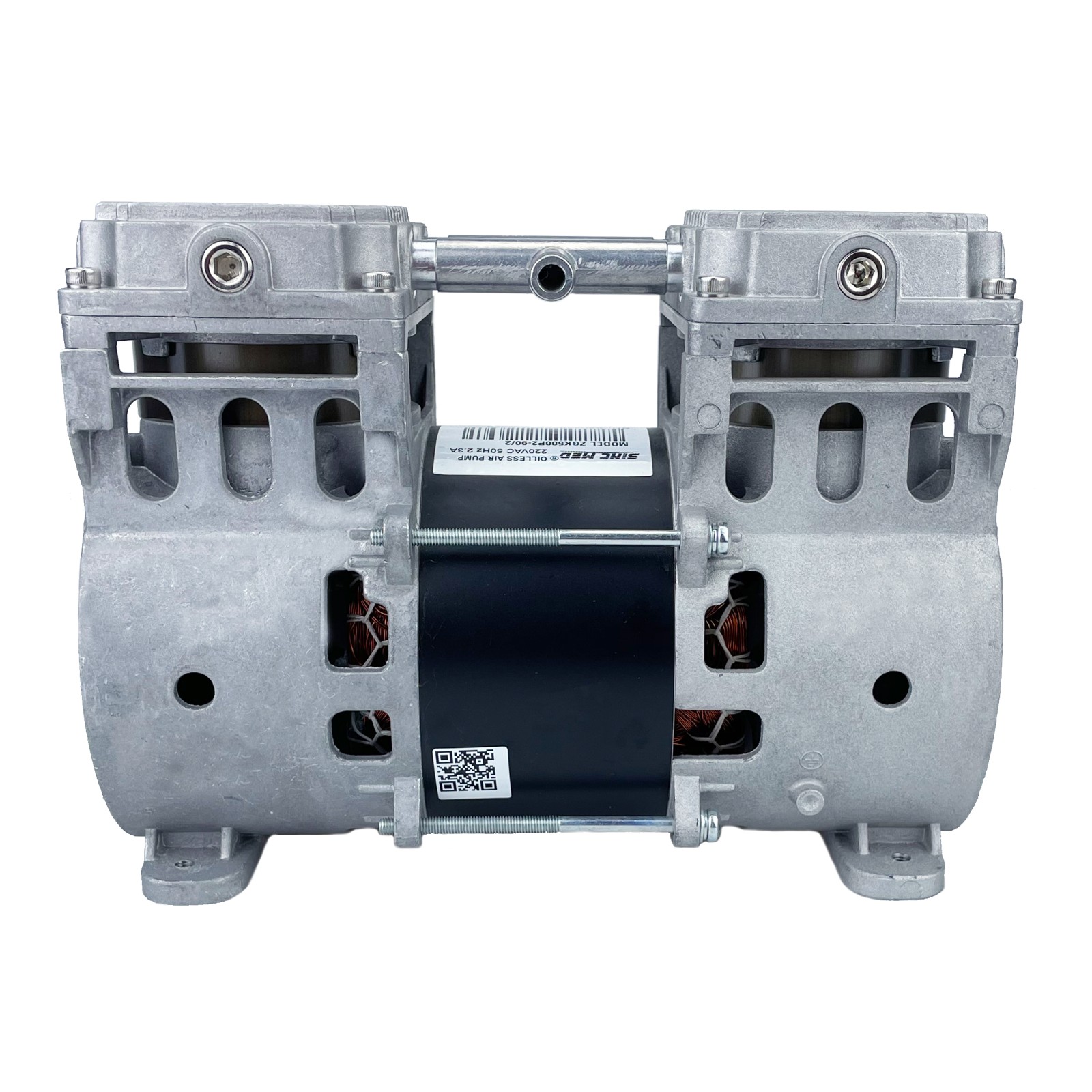

110L/MIN oilless air pump for 10L medical oxygen concentrator
Power: 580W
Air flow: 110L/MIN@2 BAR
Noise: <59dB
Safety certification: ETL
Air flow: 110L/MIN@2 BAR
Noise: <59dB
Safety certification: ETL
0
| NOTE: All test values are nominal and for reference only. They are not guaranteed maximum or minimum limits, nor do they imply mean or median. | ||
| Model Number | ZGK500-110/2-218 | |
| Performance Data | ||
| Head configuration | Pressure parallel flow | Pressure parallel flow |
| Nominal voltage/frequency | 110V/60HZ | 220V/50HZ |
| Current at rated load | 5.6A | 2.7A |
| Power at rated load | 590W | 580W |
| Flow at rated load | 110L/MIN | 110L/MIN |
| Pressure at rated load | 30PSI(2BAR) | 30PSI(2BAR) |
| Speed at rated load | 1650RPM | 1400RPM |
| Noise | <59dB | <59dB |
| Max.Pressure restart | 0 PSI | 0 PSI |
| Electrical Data | ||
| Motor type[Capacitance] | P.S.C(35uF) | P.S.C(14uF) |
| Motor insulation class | B | B |
| Thermal switch[Open temperature] | Thermally protected(145°C) | Thermally protected(145°C) |
| Line lead wire color,gauge | White(hot),black(neutral),18AWG | Brown(hot),blue(neutral),18AWG |
| Capacitor lead wire color,gauge | Blue,blue,18AWG | Black,black,18AWG |
| General Data | ||
| Operating ambient air temperature | 50° to 104°F(10° to 40°C) | 50° to 104°F(10° to 40°C) |
| Safety certification | ETL | ETL |
| Dimension(LXWXH) | 257X146X190MM | 257X146X190MM |
| Installation size | 218.2X88.9MM | 218.2X88.9MM |
| Net weight | 10KG | 10KG |

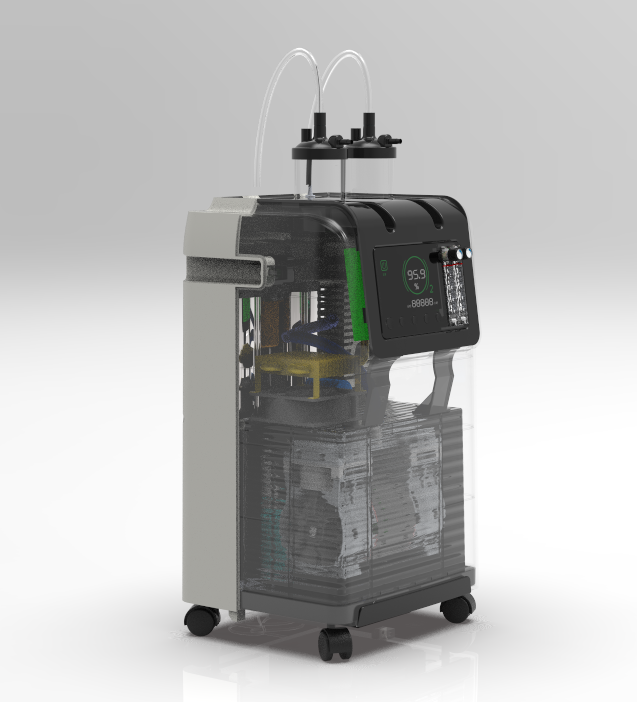

| Application | For 10L oxygen concentrator use | |
